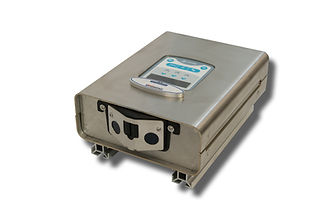

SAUSHED 500 - Industrial InkJet Printer

High-Resolution Coding & Marking

1 to 8 lines of print, maximum 18mm print height.
Stand Alone Printer

Use a USB stick to transfer print messages from the software.
PC Connectivity

Via USB cable or Ethernet for direct message creation or factory network system.
True Type Fonts & Unicode

Enables message creation in any font and in any language.
Graphics, Logos & Barcodes

easily import JPEG & BMP graphics using Sauven Pro software.
Large Oil Based Ink Cartridge

Low-cost coding and clean inking system, ideal for printing onto porous surfaces.

Multi Port Connection

For encoders, external alarms and alternative product detection devices.
Simple Screen & Keyboard

For local control of printer width, direction and message delay.
Out of the Box Installation

With minimal components for maximum reliability.
Ink Saver Mode

Reduce ink consumption by up to 50%

Features:

•  1 to 8 lines of print

•  18mm total print height

•  High-resolution piezo print head

•  Prints text, graphics, logos and barcodes

•  Prints time and multiple date formats

•  Continuous repeat print capability

•  100m/min print speed (30m/min for bar codes & 3mm text)

•  Single start /stop print button

•  Visual alarm indicator including ink low

•  Message width, delay and print direction control

•  Built in product detection photocell

•  Weight 1.7kg (excluding ink cartridge and brackets)

•  Size 242 x 178 x 90mm

Connectivity:

•  USB-A memory stick included

•  USB-B

•  Ethernet (optional)

•  I/O port for encoder, alarm beacon and •  external photocells Ink
•  Sealed replaceable ink cartridge

•  (up to 15 million characters)

•  Oil based inks for porous surfaces

•  Various colours


Electrical:

•  90-260VAC to 24VDC power supply included
